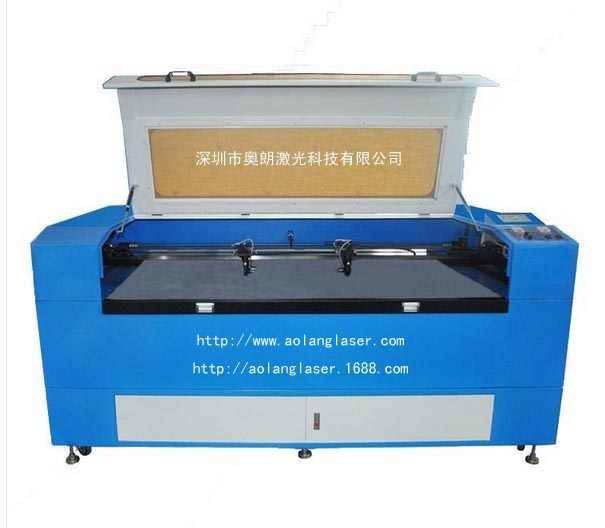

奥朗板材型激光切割机是针对亚克力板、塑胶板、电子薄膜、皮革、木板的切割需要而专门设计制造的机型，独具匠心的设计，使得板材的切断面达到了超乎想像的平滑光整，系统工作运行十分平稳。
1.采用国内顶尖技术研制的高频匀功封离式CO2激光器，激光功率可连续24小时均匀输出，能量充沛，抗干扰能力强。
2.机械系统采用贴近人体工学的一体化设计，操作方便、舒适；动力系统采用台湾直线导轨；运动轨迹平滑细腻，速度精度大幅提高。
3. 光学系统采用反射及全透率硅镜片光束质量精细恒定，切割深度大，雕刻精度高。
4.智能化软件编辑，用户可根据加工需要，设置加减速度/匀速操作方式，图文输出可实现清扫、勾线、切割一次性完成，具备兼容AUTOCAD、CORELDRAW 、PHOTOSHOP等软件。
应用行业:
工艺礼品、包装制板、日用品模型、影雕皮革、广告装潢、竹木制品、电子电器、灯饰、纸品等刀模制作.
适用材料:
有机玻璃、合成天然类皮革、塑料、PVC类、纸类、木竹、橡胶、树脂、数码相筐切割、不干胶刀模、电子显示屏、手机触摸屏等.
AL Series CO2 Laser Marking Machine
1. Using technology developed by Sino-foreign cooperative CO2 laser, import beam expander and adjust focus optical system galvanometer scanning system; thermostat cooling system; push-pull movements workbench; simple operating system and exclusive Silent system design, provide customers an ideal new laser processing equipment.
2. AL Series Laser Marking Machine features: avant-garde design, advanced technology, quality and stability; excellent value for money, investment, operating and maintenance cost; mute design, highlighting the concept of environmental protection.
3. AL Series Laser Marking Machine features and configuration
Non-metallic type of marking, engraving
Compatible CORELDRAW, AUTOCAD software. Supported DXF, BMP, PLT, PCX and other file formats.
Configuration of industrial computers, red locator.
Application sectors:Clothing, leather, craft gifts, wood products, advertisement decoration, dashboard electronics, household, packaging and so on.
Applicable industry:
Leather, cloth, wood, plexiglass, glass, rubber, resin and other non-metallic. Metal alloy and oxide, ABS, epoxy resin, such as ink.
Industry uses:
Leather industry of high-speed carving, drilling; clothing and accessories Graphic marking, carving, image scanning; wood products of high-speed engraving machine; other non-metallic high-speed marking, engraving.
| 型号 |
AL-0906-T |
AL-1206-T |
AL-1209-T |
AL-1509-T |
| 激光管功率 |
80W |
80W |
80W-120W |
80W-120W |
| 有效工作面积 |
900mm*600mm |
1200mm*600mm |
1200mm*900mm |
1500mm*900mm |
| 机器外观尺寸(长*宽*高) |
180cm*110cm*100cm |
180cm*110cm*110cm |
180cm*140cm*110cm |
210cm-140cm-110cm |
| 激光强度 |
255级可分 |
  |
| 最大扫描程度 |
2500dp |
| 内存容量 |
机器自带32M存储,可脱机工作 |
| 定位程度 |
﹤±0.01mm |
| 支持图形格式 |
Hpgl/bmp/dxf/dwg/plt |
| 驱动方式 |
伺服系统 |
| 最小成行文字 |
汉字1mm*1mm英文0.8mm*0.8mm |
| 切割厚度 |
1mm-25mm有机玻璃 |
| 机器重量 |
350kg |    |
