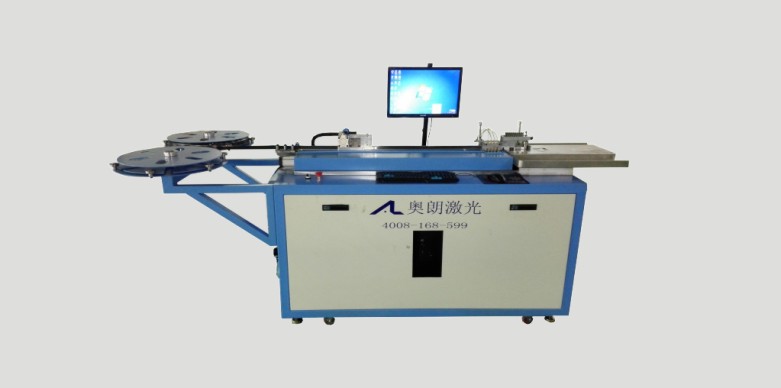

产品名称： AL-680全自动电脑弯刀机
功能要点：
可同时实现弯曲、打桥位、前鹰嘴、后鹰嘴、前平切、后平切六种功能，快速准确；
图形在机器上弯制完毕，可直接校对装板，无须另外旁置切边及打磨；
实现真正意义上的全自动化弯刀，大大节省装刀制板时间；
强大完善的软件控制系统，使对弯刀的任一要求均得心应手。
适用于电子板刀模、盒子刀模、卡牌刀模、公仔及吸塑刀模的弯曲。


产品介绍 功能参数


自动弯刀机功能介绍：
1.可同时实现弯曲、打桥位、前鹰嘴、后鹰嘴、前平切、后平切六种功能，快速准确；
2.图形在机器上弯制完毕，可直接校对装板，无须另外旁置切边及打磨；
3.实现真正意义上的全自动化弯刀，大大节省装刀制板时间；
4.可同时使用六种功能，也可只选择其中的某一种或某几种；
5.强大完善的软件控制系统，使对弯刀的任一要求均得心应手。
6.适用于电子板刀模、盒子刀模、卡牌刀模、公仔及吸塑刀模的弯曲。
自动弯刀机工作原理：
自动弯刀机是用于电子、印刷包装行业所用的激光刀模生产的。
模切刀是高8mm——30mm、厚0.45mm——1.05mm的条状单刃刀片,常见规格为长1m的直刀或100m的盘刀,其平面图形等同于展开的加工件图形边界。数控弯刀机主要由数控系统、进给机构、旋转机构和弯刀嘴组成。弯刀嘴分为固
定模和转动模。在模切刀加工过程中,进给机构将刀片送进弯刀嘴固定模,固定模紧紧握住刀片,旋转机构驱动转动模将刀片精确地折弯,这样反复工作,完成预定形状。模切刀镶嵌在母板(木质或塑质、金属等)上,即为模切板。
将模切板安装在专用设备上,可以实现大开张的包装印刷材料一次冲切成形。

自动弯刀机发展历程：

现今电子、印刷包装行业飞速发展，作为其配套的工业——模切板（刀模）加工业得到了很大的发展。随着市场份额的增大，越来越多的企业及资金进入该行业，致使原先利润非常可观的刀模加工行业进入了举步维艰的境地
。但是,在以价格为主要因素的市场竞争中,企业除了要降低生产成本外,提高生产效率也是在竞争中胜出的重要因素。而电脑自动弯刀机作为刀模生产中两大核心设备之一,对刀模加工的效率和精度起着举足轻重的作用。

但是以往从国外进口的全自动电脑弯刀机不仅价格昂贵，且维修困难。国产的电脑弯刀机又只能实现简单图形的大致弯折功能，打桥位、平切等功能也只能用手工完成，生产率低且易受操作者的技术水平限制，导致产品质量
良萎不齐，给提高激光刀模质量和制作效率带来了难以解决的问题。

在了解到激光刀模(模切板)制造行业广阔的发展前景后，奥朗利用自身在数控控制系统研发的优势，组织一批在自动化设备制造行业顶尖的工程师，工艺师组成研发团队，开展新的自动弯刀机研发工作。针对国内激光刀模
行业发展的现状和应用工艺，历经大半年的时间对产品的硬件进行了针对性的设计，在软件工艺上吸收了国内外众多厂家的优点，研制出来的“刀模之星”系列电脑弯刀机拥有如下主要优点：

1、控制系统功能强大，操作简便，不仅支持AUTOCAD软件的DXF格式，还可独立支持CORELDRAW 和 ILLUSTRATOR软件的*AI格式，弯刀时无需利用CAD软件重新描边，大大节省了时间，提高了效率，国内首创！
2、电脑弯刀机的刀条送料部分采用进口丝杆夹刀送料的方式，尺寸精确无误差，且产品重复性好，使操作更加安全可靠。
3、电脑弯刀机弯折部分采用日本进口伺服电机及国外进口模具钢弯曲模具，制作精细包装盒模具、卡通模、公仔模及波浪线等复杂图形时，速度快效率高，精度到位。
4、一台电脑弯刀机可当六个人工大师傅,大大提高了工作效率,降低了工厂管理成本，摆脱对人工制作高难度刀模的依赖性。

众所周知，现在刀模行业的价格竞争，已经到了白热化的阶段，激光刀模的价格一降再降，单纯着眼于价格竞争，实在是一种无奈的选择。功欲善其事，必先利其器，市场竞争，既是价格的竞争，更是成本、效率及品质的竞
争——希望我们的自动电脑弯刀机可以为您降低工厂人力成本、提高产品质量和效率，使您的事业能更快的发展壮大！



Product name: AL - 680 fully automatic computer machete machine

Function points:

Can achieve bending at the same time, playing bridge, former chick, chick, sliced before and after sliced six functions, fast accurate;

After bending, graphics in the machine can be directly checked plate, no extra set trimming and polishing.

Implementation in the true sense of full automatic machetes, greatly save the time of loaded knife plate;

Powerful software control system, make any request to the machetes are handy.

Applicable to electronic BanDao mould, cutting die box, card knife mould, doll and blister bending die cutter.

Product introduction function parameters

Automatic machetes machine function is introduced:

1. At the same time before bending, playing bridge, chick, chick, sliced before and after sliced six functions, fast accurate;

2. The graphics on the machine after bending, can be directly checked plate, do not need to the other side trimming and polishing.

3. The implementation in the true sense of full automatic machetes, greatly save the time of loaded knife plate;

4. Can use six functions at the same time, also can choose only one or several of them;

5. Strong perfect software control system, make any request to the machetes are handy.

6. Applicable to electronic BanDao die, die cutter box, card knife die, doll and blister bending die cutter.

Automatic machetes machine working principle:

Automatic machetes machine is used for laser cutting die used in the electronics, printing and packaging industry production.

Die cutting knife is high - 30 mm, 8 mm thick 0.45 mm - 1.05 mm strip single edge razor blades, common specifications for 1 m long straight knife or 100 m disc knife, the plane figure is equal to a graphics processing boundary. CNC bending machine is mainly composed of nc system, feeding mechanism, rotating mechanism and a curved knife mouth. Curved knife mouth can be divided into solid

Mould and rotational mould. In the process of die cutting knife, the blade can feed mechanism in curved knife mouth fixed mold, fixed die hang on blade, rotary driving rotational mould the blade bending with precision, so repeated work, complete the booking form. Die cutting knife set in the motherboard (wooden or plastic, metal, etc.), is the die cutting plate.

Will die cutting plate installed on the special equipment, can achieve large opening a punching forming of packaging and printing materials.

Automatic machetes machine development:

Electronics, printing and packaging industry rapid development today, as its supporting industries, die cutting board () of the knife mold processing industry got great development. With the increase of market share, more and more enterprises and capital into the industry, the originally very profitable knife mold processing industry has entered a difficult position

. But, in the price as the main factor of market competition, enterprises in addition to reduce the production cost, improve production efficiency, it is also an important factor to win in the competition. Automatic computer machete machine as one of two core equipment in the production of the knife mold, the knife mould machining precision and efficiency of plays an important role.

But before fully automatic computer machete machine imported from abroad is not only expensive, and difficult maintenance. Domestic computer machete machine and can only achieve the function of simple graphics roughly bending, playing bridge, sliced, and other functions also can only use done by hand, low productivity and easy restricted by operator's technical level, to the quality of the product

Good Withers not neat, to improve the quality of laser cutting die and production efficiency is difficult to solve the problem.

After learning that the laser knife mould (die cutting plate) manufacturing industry wide development prospects, he use oneself in the advantage of nc control system research and development, organization of a batch of the automation equipment manufacturing industry's top engineers, technicians of the r&d team, to launch a new automatic machetes machine research and development work. In view of the domestic laser cutting die

Industry development present situation and application of the technology, after rectified time targeted for the hardware design, software process absorbed the advantages of domestic and international numerous manufacturers, developed the "star" of the knife mold series computer machete machine has the following main advantages:

1, the control system is powerful, easy to operate, not only support the DXF format of AUTOCAD software, can also be independent support CORELDRAW or ILLUSTRATOR software * AI format, curved knife without using CAD software to stroke, greatly saves time and improves the efficiency of domestic initiative.

2, computer machete machine blade feeding part adopts imported screw clamp cutter feeding way, size accurate error-free, good repeatability, and the product make the operation more safe and reliable.

3, computer machete machine bending part adopts imported servo motor imported from Japan and abroad steel bending die, well-produced box mold, cartoon, doll mode and wavy lines and other complex graphics, speed of high efficiency and accuracy in position.

4, a computer machete machine when six technical university teacher, greatly improving the work efficiency, decrease the cost of the factory management, get rid of the dependence of artificial making difficult cutting die.

As is known to all, now the price of the knife mold industry competition, has been to the white-hot stage, reduced the price of laser cutting die down again and again, simply focus on price competition, it is a kind of helpless choice. To work a good job, must first sharpen his, market competition, competition is not only the price, but also the competition of cost, efficiency and quality

Dispute - hope our automatic computer machete machine can for you to reduce factory labor costs, improve product quality and efficiency, can make your business grow faster!
